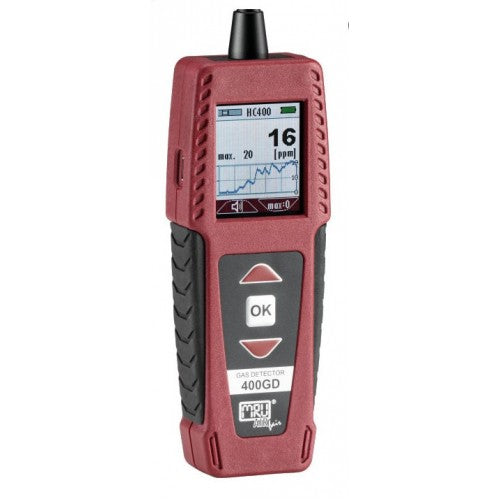

Stack Moisture Gas Detector - 400 GD With RM 400 Sensor

Original price $535.00 - Original price $535.00
Original price
$535.00
$535.00 - $535.00
Current price $535.00
SKU 400GD GTIN : 23190787

Free 30 Day Returns

  • ISO

  • 35+

    Years of Experience
  • Competitive Pricing

  • VOSB Certified Company

400 GD INFO SHEET *

Description

The 400 GD from Diamond Scientific is used for locating gas leakages in installation areas. We sell, service and commission this multifunctional stack moisture detector.

Leak detection for the following gases:

  • CH4
  • C3H8
  • H2
  • Stack moisture detection
  • Refrigerant leak detection
  • Detector for Air quality
  • Infrared temperature measurement

Additional sensor options available.

Perfectly suitable to locate gas leakages in installation areas. The sensor can be introduced to areas with difficult access using the flexible sensor neck.

Features:

  • Reliable gas leak detection and stack moisture test with only one system
  • Adjustable alarm thresholds
  • Optical alarm at the sensor and on the display of the device
  • Acoustic and vibration alarm by the device
  • Strong Lithium-Ion battery, chargeable via Mini-USB socket



Technical Data:

Range Resolution Reaction time
LEAK DETECTION
CH4 Sensor 0 – 44,000 ppm 1 ppm < 5 sec.
C3H8 Sensor 0 – 17,000 ppm 1 ppm < 5 sec.
H2 Sensor 0 – 40,000 ppm 1 ppm < 5 sec.
STACK MOISTURE DETECTION
RM Sensor 0 to 100 1 < 1 sec.
REFRIGERANT LEAK DETECTOR (RF Sensor)
Cooling agents R134a, H2, R410a, R1234Ze
FCKW, H7CKW, FKW, H7KW, HFO
0 to 1,000 ppm 1 ppm < 3 sec.
AIR QUALITY DETECTOR (HM Sensor)
Humidity 0 to 100 RH
Temperature 32 to 140°F
Ambient pressure 120 … 441 inH2O
Dew point calculated out of Humidity and Temperature
INFRARED TEMPERATURE
IR Sensor – 70 … + 380 °C 0.1 °C
– 94 … + 716 °F 0.18 °F
OTHER SPECIFICATIONS
Operating time: up to 20 hours continuous operation
Dimensions (housing): 5.31″ x 1.97″ x 0.98″ (L: 135 mm; W: 50 mm; D: 25 mm)
Dimensions (sensor neck): Length: 9.84″ (250 mm)
Weight: approx. 8 ounces (without sensor) (230g)
