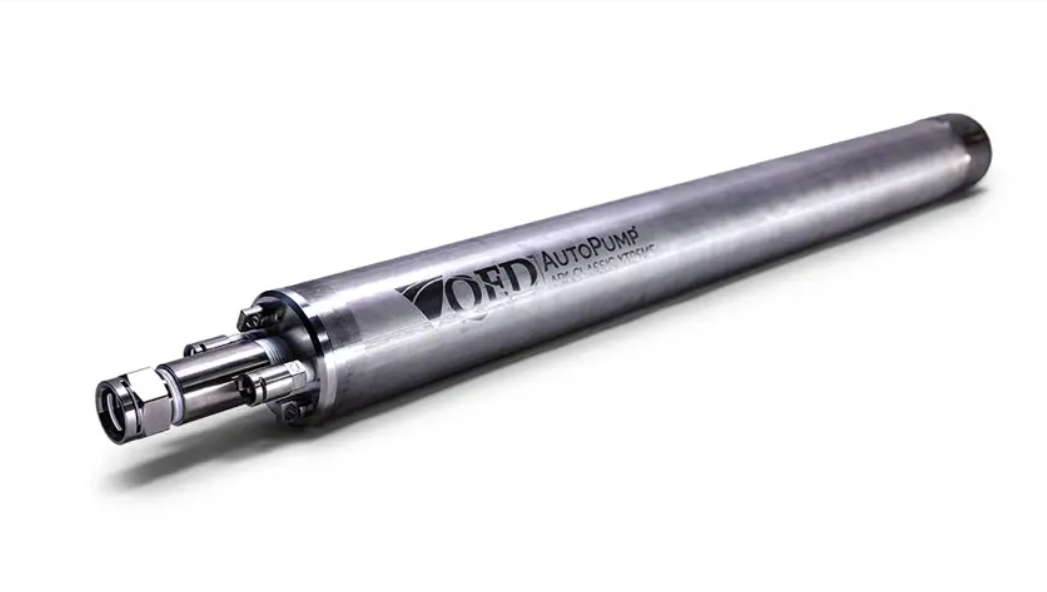

Automatic Air Pump AP4 Ultra - High Temperature

Description

QED’s special AutoPump® AP4 Ultra models are available to pump fluids up to 250 ºF (120ºC), and are already proven in service. These high temperature pumps use the highly reliable AutoPump core design and proprietary Ultra non-stick finishes, but add specialized materials of construction to extend the upper temperature limit. The end result is a proven pump that delivers long-term durability and withstands high liquid temperatures.

Key Features

• Proprietary non-stick finishes on float and discharge tube to reduce solids buildup
• 100% air-powered operation
• Corrosion-resistant 316-grade stainless steel metallic parts
• Reliable air control mechanism
• Temperature ratings up to 250 °F, making it ideal for high temperature applications.
• ATEX Certified
• Functions under positive or negative (vacuum) pressure environments
• Does not require clean dry air to function properly and pumps particles up to 1/8 inch in diameter
• The AP4+ air valves can pass 90 weight oil without fouling
• Able to pump products with a specific gravity as low as .72
• 5 Year Warranty

Benefits

• Increase landfill gas extraction rates
• Reduced risk of liquid leakage through liners and side slope failures
• Lower rates of odors and non-methane organic compounds
• Field tests have shown that the AutoPump® AP4 & AP4.5 Ultra will last up to 10 times longer between service events. Tested in the most severe applications.
• Cleans in up to 50% less time than control group, determined by field tests
• Simple disassembly with no fasteners and no cotter pins
• AutoPumps require no surface timer-based controllers, bubblers or sensors in the well to operate
