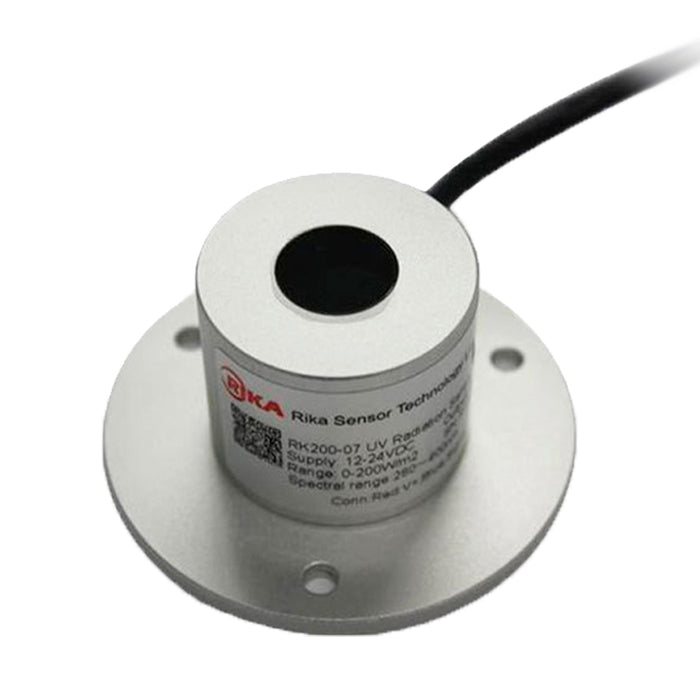

Kunak Radiation Sensor
by DiamondSci
Free 30 Day Returns
* KUNAK DATASHEET *
Description
Attaching externally to Kunak AIR stations, the Radiation Sensor detects UV radiation from 280 to 400 nm and are calibrated in energy flux density units of watts per square meter. Typical applications of UV sensors include incoming UV radiation measurement in outdoor environments or in laboratory use with artificial light sources (e.g., germicidal lamps).
| Range | 0 to 200 W/m² 280 to 400 nm |
|---|---|
| Accuracy | ±5% rdg |
| Weight | 150 g |
| Response time | ≤1s |
| Operating temperature | -40 to 85 ºC |
| Dimensions | Ø64 x 33.5 mm |
| Protocol | Modbus RTU (RS-485) |
