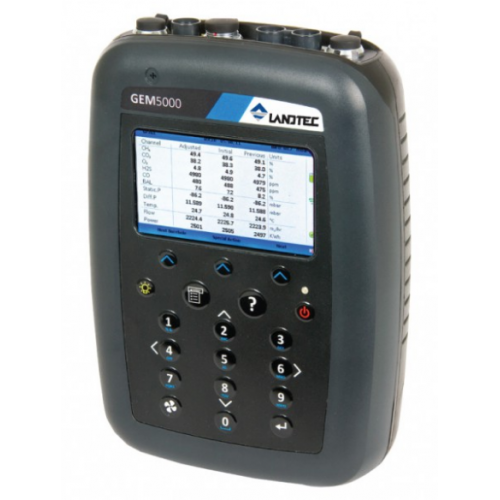

Landtec GEM™5000 Landfill Gas Analyzer

The Landtec GEM™5000 monitors Landfill Gas (LFG) collection and control systems by sampling and analyzing the methane, carbon dioxide and oxygen content of landfill gas. Some models also include carbon monoxide and hydrogen sulfide analysis options (listed below).

Features

Measures % CH4, CO2 and O2 volume, static pressure and differential pressure
Calculates balance gas, flow (SCFM) and calorific value
Fast and accurate measurement
Light and compact structure
Certified intrinsically safe for landfill use
Calibrated to ISO/IEC 17025
CO and H2S detection (on Plus models only)
3-year warranty with optional service plan
Annual recommended factory service
Available with GPS and additional gas detector

Benefits:

Designed specifically for use on landfills to monitor landfill gas (LFG) extraction systems, flares, and migration control systems
No need to take more than one instrument to site
Can be used for monitoring subsurface migration probes and for measuring gas composition, pressure and flow in gas extraction systems
The user is able to set up comments and questions to record information at site and at each sample point
Ensures consistent collection of data for better analysis
Streamlined user experience reduces operational times

Applications:

Remediation - Site investigation and clean up
Remediation - Site investigation and clean upWaste to Energy - Gas field balancing and maximizing gas production
Environmental Compliance
Landfill Gas Collection & Control Systems
Landfill Gas to Energy
Subsurface Migration Probes

Not necessarily. When the H2S sensor is exposed to high levels of H2S gas, it is recommended to run the instrument with the gas pump on with ambient air for the same amount of time the sensor was exposed to the high level of H2S. This allows for purging of the instrument before turning the instrument off. Be aware though that continued exposure to levels over 5000ppm H2S will damage the sensor.

Is it safe to expose the H2S sensor in an Optima-7 to H2S gas concentrations just below 5000ppm?

Exposure to H2S levels from 2000-5000ppm with moisture will degrade the sensor more quickly. Using filters inline reduces the moisture content of the gas stream entering the instrument.

A gas reading is much lower than expected. Is the sensor bad?

A common cause for lower than expected gas readings is leakage in the instrument. Perform a leak test by connecting the Condensate Separator Tube to the Pressure Connection 1 Port with tubing.

Perform a leak test as described in the User Manual Optima 7 Biogas. If the leak test fails, check for defective or missing o-rings in the Condensate Separator Tube.

If the user uses the Sampling Probe with sampling lines to take gas readings, place a clean Leak Proof Test Cap on the end of the probe spike. Attach the other end of the sampling line onto the Condensate Separator Tube. Perform the leak test. If the leak test fails, check for defective or missing o-rings in the Condensate Separator Tube and for cracks in the sampling line.

The Optima 7 is not displaying a temperature reading after inserting the thermocouple into the instrument.

Look closely at the prongs of the thermocouple. The prongs might be dirty. Use a sponge soaked in a 1:3 vinegar/water solution and gently wipe the prongs. Wipe dry with a lint-free cloth or allow to air-dry.

The Optima 7 will not power down after pressing the OFF key. How do I turn off the instrument?

Simultaneously, press the ESC key and the power button then release both keys. You will have to update the Date and Time setting in your instrument afterwards.

GEM 5000 MODELS

5000 CH4, CO2, 02, static and differential pressure
5000+ Adds CO (0-2000 ppm), and H2S (0-500 ppm)
5000+1 Adds CO (0-2000 ppm), and H2S (0-1000 ppm)
5000+5 Adds CO (0-2000 ppm), and H2S (0-5000 ppm)
5000+10 Adds CO (0-2000 ppm), and H2S (0-10000 ppm)
5000Nav Adds Built-in GPS
5000Nav+ Adds Built-in GPS, CO (0-2000 ppm), and H2S (0-500 ppm)
5000Nav+1 Adds Built-in GPS, CO (0-2000 ppm), and H2S (0-1000 ppm)
5000Nav+5 Adds Built-in GPS, CO (0-2000 ppm), and H2S (0-5000 ppm)
5000Nav+10 Adds Built-in GPS, CO (0-2000 ppm), and H2S (0-10000 ppm)

No data available

* GEM 5000 INFO/SPECS *

* GEM 5000 MANUAL *

Customer Reviews

Based on 12 reviews Write a review

We purchased an Optima 7 Biogas analyzer on Ray's recommendation. It's exactly the instrument we needed. Very easy to use. Thanks. Ray!!

Ray and Diamond Scientific always represent our products and solutions with enthusiasm, knowledge, and confidence. We couldn't ask for a better partner to support our customers!

Honest, knowledgeable, professional, and courteous staff that stand behind their products and service. We regularly refer our clients to Diamond Scientific knowing they will have the same experience we had

Combustion gas analyzer from diamond scientific helps measure various gas pollutants in the exhaust for environmental reasons, which helps a lot in my work domain

I have always received prompt and professional service from Diamond Scientific. They are a pleasure to work with.

Send Inquiry For More Info

Diamond Scientific, offers the GEM™5000 Landfill Gas Analyzer, an industry-leading solution for accurate and reliable measurement of landfill gas composition. Our product is designed to analyze landfill gas, digester gas, and other biogas output according to EPA and state regulatory requirements.

The GEM™5000 Landfill Gas Analyzer is a versatile and user-friendly device that delivers accurate measurements in real-time. It also comes with advanced features that allow for on-site calibration, data analysis, and multiple gas measurements.

Our product can operate under a wide range of conditions, and its rugged design ensures long-lasting and high-quality performance. It is also easy to transport and has a compact design, making it an ideal choice for field deployment.

If you require more information or assistance in choosing the right GEM™5000 Landfill Gas Analyzer or monitoring system for your application, our team of experts is always available to help you.
