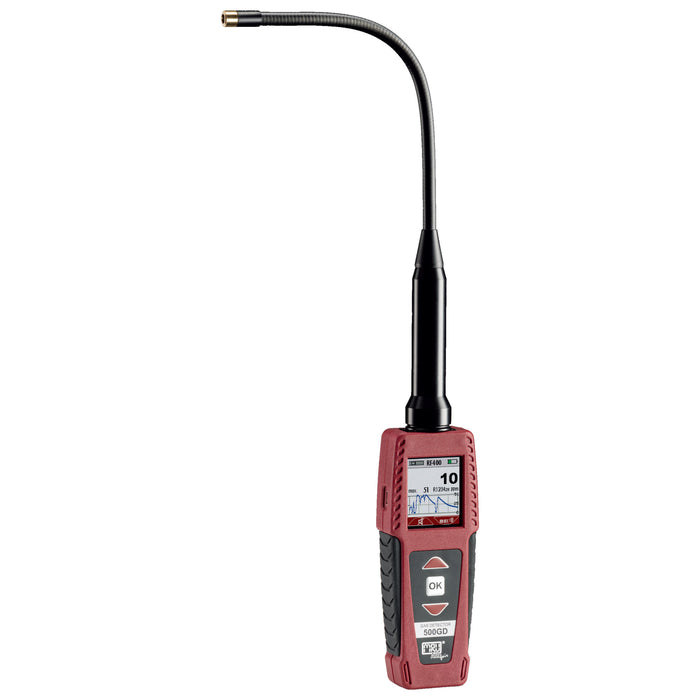

Stack Moisture Detector - 500 GD with RM 400 Sensor
by DiamondSci
Original price
$724.00
-
Original price
$724.00
Original price
$724.00
$724.00
-
$724.00
Current price
$724.00
SKU
GTIN :
* 500 GD INFO SHEET *
Description
The 500 GD from Diamond Scientific is used for locating gas leakages in installation areas. We sell, service and commission this multifunctional stack moisture detector.
Leak detection for the following gases:
- CH4
- C3H8
- H2
- Stack moisture detection
- Refrigerant leak detection
- Detector for Air quality
- Infrared temperature measurement
Additional sensor options available.
Perfectly suitable to locate gas leakages in installation areas. The sensor can be introduced to areas with difficult access using the flexible sensor neck.
Features:
- Reliable gas leak detection and stack moisture test with only one system
- Adjustable alarm thresholds
- Optical alarm at the sensor and on the display of the device
- Acoustic and vibration alarm by the device
- Strong Lithium-Ion battery, chargeable via Mini-USB socket
- Faster response time due to integrated gas suction (<1.5 seconds)
- Search mode for fast leak detection (refrigerant sensor RF 400)
- Reliable zeroing, even with contaminated ambient air
Technical Data:
| Range | Resolution | Reaction time | |
| LEAK DETECTION | |||
| CH4 Sensor | 0 – 44,000 ppm | 1 ppm | < 5 sec. |
| C3H8 Sensor | 0 – 17,000 ppm | 1 ppm | < 5 sec. |
| H2 Sensor | 0 – 40,000 ppm | 1 ppm | < 5 sec. |
| STACK MOISTURE DETECTION | |||
| RM Sensor | 0 to 100 | 1 | < 1 sec. |
| REFRIGERANT LEAK DETECTOR (RF Sensor) | |||
| Cooling agents | R134a, H2, R410a, R1234Ze | ||
| FCKW, H7CKW, FKW, H7KW, HFO | |||
| 0 to 1,000 ppm | 1 ppm | < 3 sec. | |
| AIR QUALITY DETECTOR (HM Sensor) | |||
| Humidity | 0 to 100 RH | ||
| Temperature | 32 to 140°F | ||
| Ambient pressure | 120 … 441 inH2O | ||
| Dew point | calculated out of Humidity and Temperature | ||
| INFRARED TEMPERATURE | |||
| IR Sensor | – 70 … + 380 °C | 0.1 °C | |
| – 94 … + 716 °F | 0.18 °F | ||
| OTHER SPECIFICATIONS | |||
| Operating time: | up to 20 hours continuous operation | ||
| Dimensions (housing): | 5.31″ x 1.97″ x 0.98″ (L: 135 mm; W: 50 mm; D: 25 mm) | ||
| Dimensions (sensor neck): | Length: 9.84″ (250 mm) | ||
| Weight: | approx. 8 ounces (without sensor) (230g) | ||
