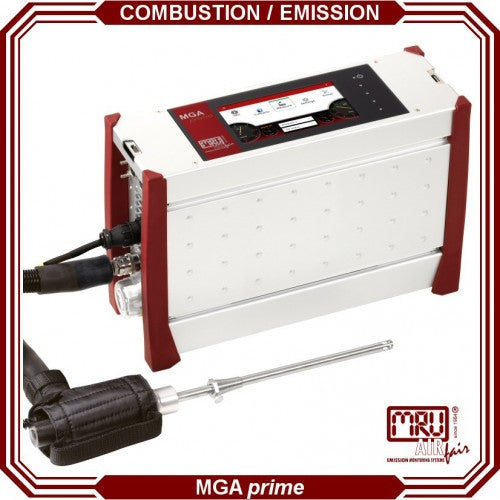

High End Flue Gas Emission Analyzer - MGA Prime

Original price $15,703.00 - Original price $15,703.00
Original price
$15,703.00
$15,703.00 - $15,703.00
Current price $15,703.00
SKU MGA-prime

USER MANUAL *

Description

  • -Precise and very stable offset measuring technique using special non dispersive infrared (NDIR) technique, for enhanced long time measurements
  • - Up to 8 gas NDIR measurement:
    - CO/CO2/C3H8/CH4/SO2/NO/NO2/N2O and oxygen with either long-life O2-ECS or
    - O2-PM (paramagnetic cell)
  • - Remote display through MRU4U App over bluetooth on smartphone or tablet or trough VCN server via LAN/WLAN
  • - 7” high-resolution (800×480 pixel) TFT color display with swipe and touch technique as for smartphones, with LINUX operating system
  • - Intuitive icons and country specific language on display
  • - Modern and robust design, Aluminum enclosure with rubber molded impact
    - Protection for use in harsh industrial environment
  • - Advanced algorithms to control analyzer’s operation e.g. warming up, compensation of cross-sensitivity values, and response time; all of which have impact on the quality and         performance
  • - Measurement of many additional parameters:
      - Temperatures (ambient and flue gas)
  •   - Pressures (atmospheric and differential)
  •   - Internal sample flow monitoring
  • - Measurement of flue gas flow velocity (using of Pitot tube) and calculation of stack gas flow rate
  • - Calculation of all combustion parameters like heat loss, combustion efficiency, excess air coefficient, dew point temperature and others
  • - Results stored in database – possibility to view entire measurement session in graphical form, create measurement reports, export data to CSV files, and more
  • - PC communication via LAN – Ethernet
  • - Wireless data transfer via WLAN dongle
  • - Long distance data transfer via RS485 cable
  • - Analog outputs (8-channels), analog inputs (4-channels)
  • - SAMPLE GAS CONDITIONING: Dual gas cooler (Peltier) with dual condensate draining pumps, with constant dew point +5°C when connected to mains power supply
  • - Condensate monitoring and alarm on display
  • - Strong gas sampling pump, regulated flow of approx 1l/min
  • - Gas sampling probe heated, with exchangeable probe tubes, including K-type thermo-couple for flue gas temperature measurement
  • - Heated sampling line, Teflon 6/4mm, 9.84′ or 16.4′ or 32.81′ (3 m – 5 m – 10 m) and other lengths

  • Product FAQs

    I have an Optima-7 and suddenly the H2S readings are bad or very high. Do I need to replace the sensor?

    Not necessarily. When the H2S sensor is exposed to high levels of H2S gas, it is recommended to run the instrument with the gas pump on with ambient air for the same amount of time the sensor was exposed to the high level of H2S. This allows for purging of the instrument before turning the instrument off. Be aware though that continued exposure to levels over 5000ppm H2S will damage the sensor.

    Is it safe to expose the H2S sensor in an Optima-7 to H2S gas concentrations just below 5000ppm?

    Exposure to H2S levels from 2000-5000ppm with moisture will degrade the sensor more quickly. Using filters inline reduces the moisture content of the gas stream entering the instrument.

    A gas reading is much lower than expected. Is the sensor bad?

    A common cause for lower than expected gas readings is leakage in the instrument. Perform a leak test by connecting the Condensate Separator Tube to the Pressure Connection 1 Port with tubing.

    Perform a leak test as described in the User Manual Optima 7 Biogas. If the leak test fails, check for defective or missing o-rings in the Condensate Separator Tube.

    If the user uses the Sampling Probe with sampling lines to take gas readings, place a clean Leak Proof Test Cap on the end of the probe spike. Attach the other end of the sampling line onto the Condensate Separator Tube. Perform the leak test. If the leak test fails, check for defective or missing o-rings in the Condensate Separator Tube and for cracks in the sampling line.

    The Optima 7 is not displaying a temperature reading after inserting the thermocouple into the instrument.

    Look closely at the prongs of the thermocouple. The prongs might be dirty. Use a sponge soaked in a 1:3 vinegar/water solution and gently wipe the prongs. Wipe dry with a lint-free cloth or allow to air-dry.

    The Optima 7 will not power down after pressing the OFF key. How do I turn off the instrument?

    Simultaneously, press the ESC key and the power button then release both keys. You will have to update the Date and Time setting in your instrument afterwards.
