Wellhead 2" PVC- LANDTEC Accu-Flo

Original price $0.00 - Original price $0.00
Original price
$0.00 - $0.00
Current price
SKU

Description

2" Horizontal Accu-Flo PVC Wellhead With 2" Gate Valve

Accu-Flo Wellheads can Help Prevent LFG Migration, LFG Emissions and Subsurface Fires. Landfill owners and operators will appreciate the Accu-Flo proven design that meets the special requirements of landfill gas (LFG) recovery for environmental compliance and energy production.

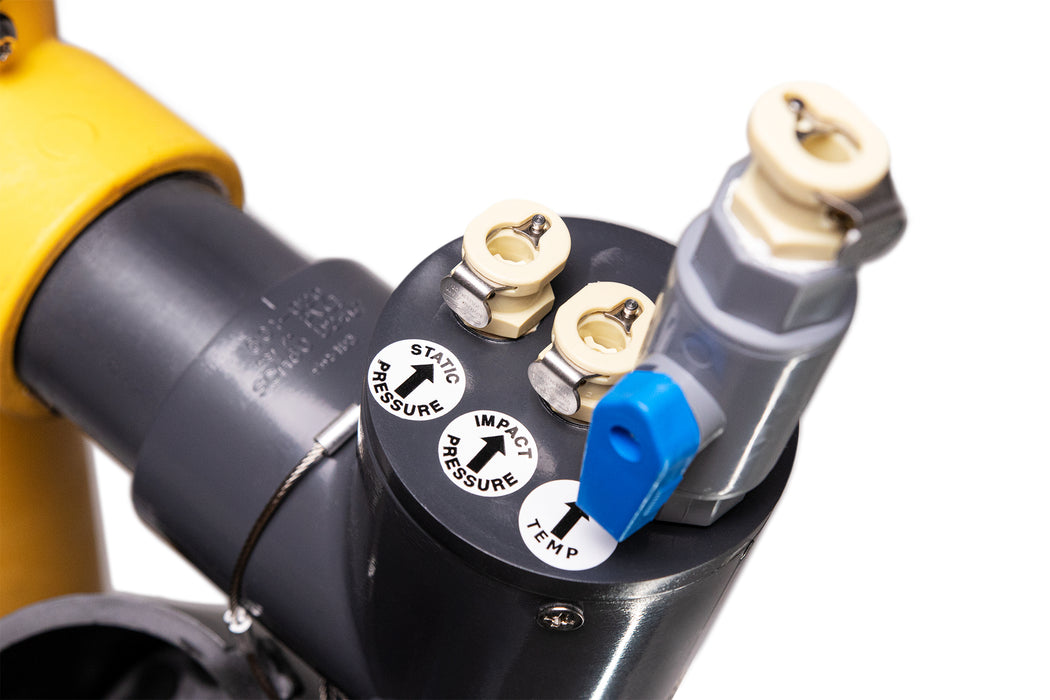

These easily-installed wellheads incorporate a built-in gas flow measurement device, gas temperature port, quick-connect gas sample and pressure ports, flow control gate valve and flex-hose. Both horizontal and vertical configurations are available in three sizes to handle a wide range of gas flow.

Features:

  • Compact size
  • Easy installation and maintenance
  • Built-in gas flow measurement
  • Built-in gas flow control gate valve
  • Quick connect measurement ports
  • High accuracy and repeatability of measurements

Durable Materials:

  • Sch. 80 PVC housing and couplings
  • Stainless steel impact tube
  • Polypropylene fittings
  • Elastomeric coupling and PVC Flexible interconnects

Benefits:

  • Helps maximize gas recovery; minimize surface emissions and subsurface migration
  • Helps control hot spots and prevent subsurface fires
  • Incorporates built-in LFG flow measuring device, gas temperature port, quick-connect gas sample ports and a flow control gate valve

Applications:

  • Gas to Energy Sites
  • Carbon Credit Projects
  • Environmental Compliance

*Other Available models:

2" Horizontal Accu-Flo PVC Wellhead With 2" Slide Valve

2" Vertical Accu-Flo PVC Wellhead 2" Gate Valve

Product FAQs

I have an Optima-7 and suddenly the H2S readings are bad or very high. Do I need to replace the sensor?

Not necessarily. When the H2S sensor is exposed to high levels of H2S gas, it is recommended to run the instrument with the gas pump on with ambient air for the same amount of time the sensor was exposed to the high level of H2S. This allows for purging of the instrument before turning the instrument off. Be aware though that continued exposure to levels over 5000ppm H2S will damage the sensor.

Is it safe to expose the H2S sensor in an Optima-7 to H2S gas concentrations just below 5000ppm?

Exposure to H2S levels from 2000-5000ppm with moisture will degrade the sensor more quickly. Using filters inline reduces the moisture content of the gas stream entering the instrument.

A gas reading is much lower than expected. Is the sensor bad?

A common cause for lower than expected gas readings is leakage in the instrument. Perform a leak test by connecting the Condensate Separator Tube to the Pressure Connection 1 Port with tubing.

Perform a leak test as described in the User Manual Optima 7 Biogas. If the leak test fails, check for defective or missing o-rings in the Condensate Separator Tube.

If the user uses the Sampling Probe with sampling lines to take gas readings, place a clean Leak Proof Test Cap on the end of the probe spike. Attach the other end of the sampling line onto the Condensate Separator Tube. Perform the leak test. If the leak test fails, check for defective or missing o-rings in the Condensate Separator Tube and for cracks in the sampling line.

The Optima 7 is not displaying a temperature reading after inserting the thermocouple into the instrument.

Look closely at the prongs of the thermocouple. The prongs might be dirty. Use a sponge soaked in a 1:3 vinegar/water solution and gently wipe the prongs. Wipe dry with a lint-free cloth or allow to air-dry.

The Optima 7 will not power down after pressing the OFF key. How do I turn off the instrument?

Simultaneously, press the ESC key and the power button then release both keys. You will have to update the Date and Time setting in your instrument afterwards.
